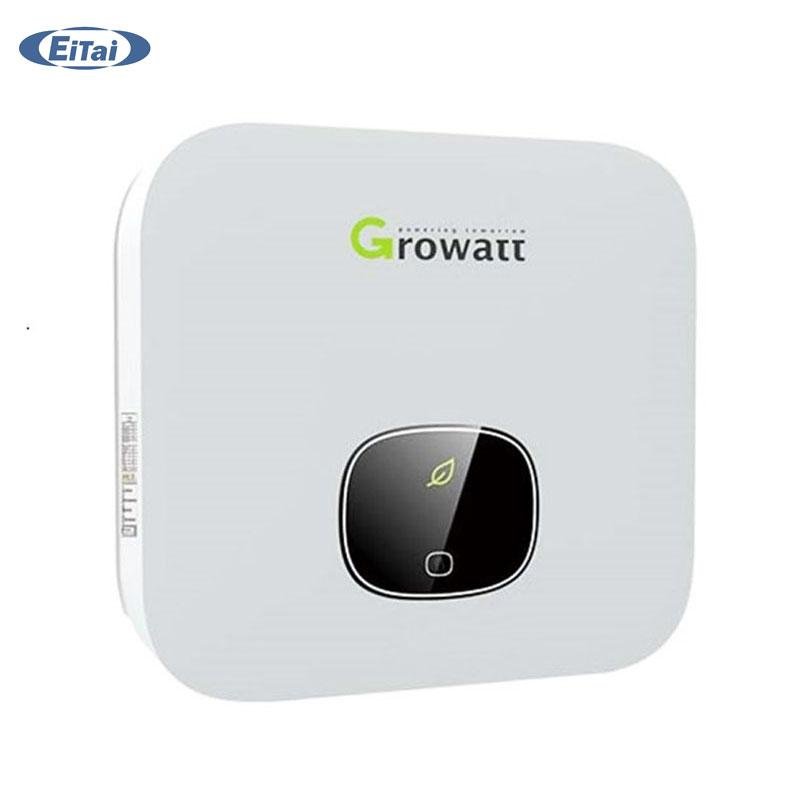

Growatt Solar Inverter

MIN
2500~6000TL-XH
· Compact and light, easy to install
· Battery ready, future proof
· 24h self-consumption monitoring
· Compatible with bifacial modules
· Type II SPD on DC side
· Max. efficiency 98.4%
· Dual MPP trackers
· AFCI optional

Datasheet
Max. recommended PV power
(for module STC)
Max. DC voltage 500V 500V 550V 550V 550V 550V
Start voltage
MPP voltage range
AC nominal power
Max. AC apparent power
AC grid frequency（range*）
Max. output current
THDi
Max.efficiency
European efficiency
Operating temperature range
Nighttime power consumption
550V
50/60 Hz (45-55Hz/55-65 Hz)
No. of MPP trackers
No. of PV strings per MPP tracker
Max. input current per MPP tracker
Max. short-circuit current
per MPP tracker
Nominal AC voltage（range*) 230V (180-280V)
Adjustable power factor 0.8leading…0.8lagging
MPPT efficiency 99.9%
DC reverse polarity protection Yes
DC switch Yes
AC/DC surge protection Type II / Type III
Insulation resistance monitoring
Yes
Ground fault monitoring Yes
Grid monitoring Yes
Anti-islanding protection Yes
Residual-current monitoring unit
AFCI protection
AC short-circuit protection
Yes
Optional
Dimensions (W / H / D)
Noise emission (typical)
Topology
Cooling
Protection degree
Relative humidity
Altitude
DC connection
AC connection
Display
Interfaces: RS485 / USB/Wi-Fi/
GPRS/ RF/LAN
Warranty: 5 years / 10 years
CE, CEI 0-21, VDE-AR-N 4105, VDE 0126-1-1, UTE C 15-712-1, EN 50549, IEC 62116, IEC 61727, G99, C10/C11, UNE217001, UNE206007, PO12.2
MIN
2500TL-XH MIN
3000TL-XH MIN
3600TL-XH MIN
4200TL-XH MIN
4600TL-XH MIN
5000TL-XH MIN
6000TL-XH
3500W 4200W 5040W 5880W 6440W 7000W 8100W
80V-500V 80V-500V 80V-550V 80V-550V 80V-550V 80V-550V 80V-550V
2
1
12.5A
16A
2500W 3000W 600W 4200W 4600W 5000W 6000W
2500VA 3000VA 3600VA 4200VA 4600VA 5000VA 6000VA
11.3A 13.6A 16A 19A 20.9A 22.7A 27.2A
<3%
100V
Nominal voltage 360V
98.2% 98.2% 98.2% 98.4% 98.4% 98.4% 98.4%
97.1% 97.1% 97.2% 97.5% 97.5% 97.5% 97.5%
375/350/160mm
10.8kg
–25°C … +60°C
≤35 dB(A)
< 1W
Transformerless
Natural convection
IP65
0-100%
4000m
H4/MC4(Optional)
Connector
Weight
OLED+LED/WIFI+APP
Yes/Yes/Optional/Optional/Optional /Optional
Yes /Optional
* The AC voltage and frequency range may vary depending on specific country grid standard.
All specifications are subject to change without notice.
AC grid connection type Single phase
Max. operation current 10A
Backup power
Input data (Storage)
DC operating voltage range 350V-480V
Output data (AC)
Efficiency
Protection devices
General data
Input data (DC)
Yes
Yes (via Automatic Switch Box)
